horizontal Lifting Clamp(HC)

Toyolift Horizontal Plate lifting clamps are used in sets of two for the horizontal transportation of plate sections. Attachment and removal of the clamps from the plate is extremely easy due to the simple and straightforward design. The working load limits shown on the technical parameter table are based on a set of two clamps used together. Toyolift Lifting Clamps provide a fast and efficient method for lifting plate or any similarly shaped fabrications. Compact shape and relatively low unit weight with high lifting W.L.L. It can only be used in pairs using a two-leg sling or spreader beam.

<p>The Toyolift Horizontal Plate lifting clamps are used in sets of two for the horizontal transportation of plate sections. Attachment and removal of the clamps from the plate is extremely easy due to the simple and straightforward design. The working load limits shown on the technical parameter table are based on a set of two clamps used together.</p><p>Toyolift Lifting Clamps provide a fast and efficient method for lifting plate or any similarly shaped fabrications.  Compact shape and relatively low unit weight with high lifting  W.L.L. It can only be used in pairs using a two-leg sling or spreader beam. </p>

Download Product Datasheet

Product datasheet

• Details
• Parameters
• Drawings
• References

The Toyolift Horizontal Plate lifting clamps are used in sets of two for the horizontal transportation of plate sections. Attachment and removal of the clamps from the plate is extremely easy due to the simple and straightforward design. The working load limits shown on the technical parameter table are based on a set of two clamps used together.

Toyolift Lifting Clamps provide a fast and efficient method for lifting plate or any similarly shaped fabrications.  Compact shape and relatively low unit weight with high lifting  W.L.L. It can only be used in pairs using a two-leg sling or spreader beam.

HORIZONTAL LIFTING CLAMP (MODEL: TL-HC)
Model		TL-HC015	TL-HC020	TL-HC030	TL-HC004	TL-HC060
Rated capacity	(Ton /pair)	1.5	2	3	4	6
Test load	( Ton /pair)	3	4	6	8	12
Jaw Opening	(mm)	0-25	0-30	0-30	0-40	0-45

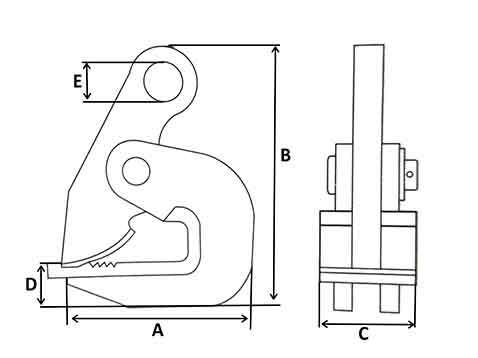

Dimensions (mm)	A	126	148	155	172	180
	B	165	205	206	245	245
	C	50	65	65	68	70
	D	42	48	48	58	58
	E	22	25	25	30	30
Net weight	(Kg/Pair)	5	7	8	10	12

Standard: EN 13155
